CHASE ELEMENT

Chase has been pushing the envelope for the past 11 years with our complete bikes and the newest edition of the Element, Element 10 is the best we have ever offered.

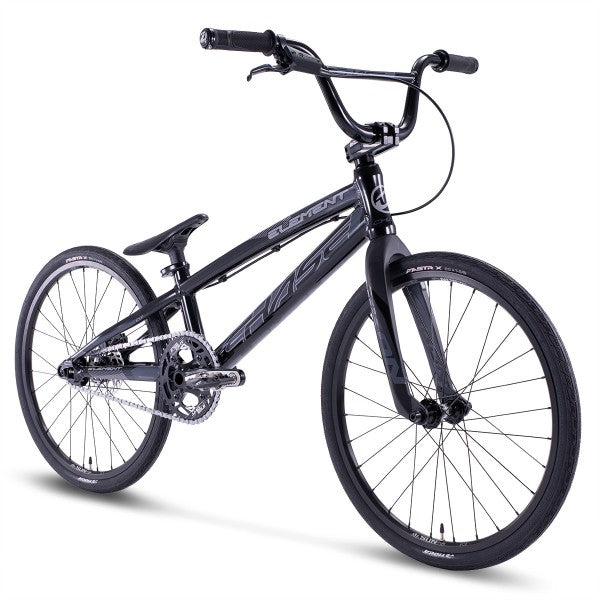

FRAME: Chase Element Expert 20" Top tube, Hydroformed 7005-T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm drop out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 45mm
HANDLEBAR: Chase Element 31.8mm 5.75"
CHAINRING: Insight 42T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 165mm, Press Fit BB86
HUBS : Chase Element M6 Bolts, 28H Front, Chase Element M6 Cassette ISO Hub 28H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé ICI-1 Rims 20×1-3/8", 28H, No Brake Surface
TIRES: Tioga Fastr X 20×1-3/8" Front & Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin pads), 120mm disc rotor
SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
PEDALS: Nylon platform. Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 4' 7.5" - 5' 0.6" / 1m41 - 1m54
WEIGHT: 18.4 LBS / 8.2 Kg with pedals

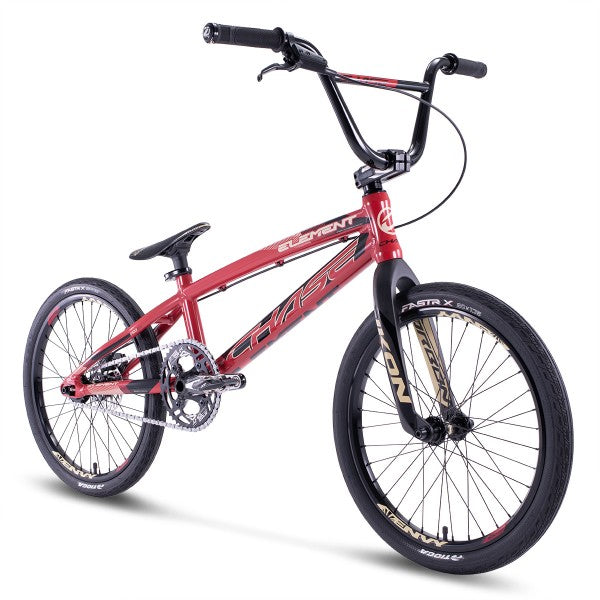

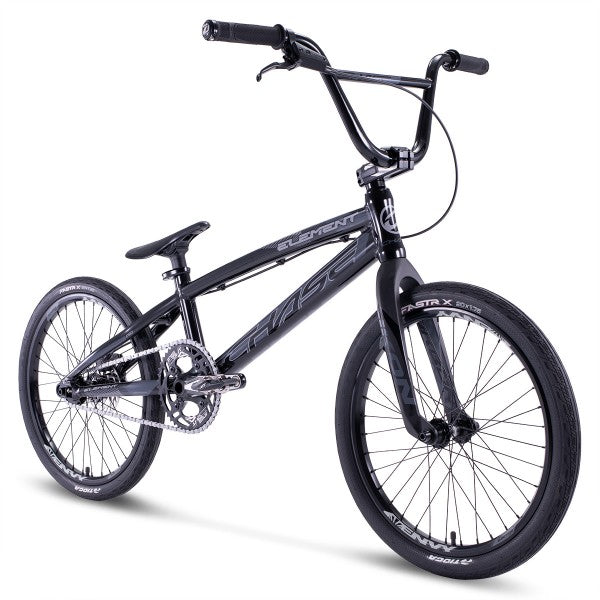

FRAME: Chase Element Pro 20.5" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8" 20mm drop out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 50mm
HANDLEBAR: Chase Element 31.8mm 7.5"
CHAINRING: Insight 43T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 175mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 32H Front, Chase Element 3/8" Bolts, 32H Rear, 16T cog
RIMS: Sun Ringlé Envy lite Rims 20×1.50", 32H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon platform. Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 4' 11.8" - 5' 5.4" / 1m52 - 1m66
WEIGHT: 20.4 LBS / 9.25Kg with pedals

FRAME: Chase Element Pro XL 21" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 53mm
HANDLEBAR: Chase Element 31.8mm 8.0"
CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET : Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 5' 4.6" - 5' 10.1" / 1m64 - 1m78
WEIGHT: 20.85 LBS / 9.45Kg with pedals

FRAME: Chase Element Pro XXL 21.5" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 53mm
HANDLEBAR: Chase Element 31.8mm 8.5"
CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 5' 8.9" - 6' 1.6 / 1m75 - 1m87
WEIGHT: 21.05 LBS / 9.55Kg with pedals

FRAME: Chase Element Pro XXXL 22" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 53mm
HANDLEBAR: Chase Element 31.8mm 8.5"
CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS - Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 6'1.2" - 6' 5" / 1m86 - 1m95
WEIGHT: 21.275 LBS / 9.65Kg with pedals

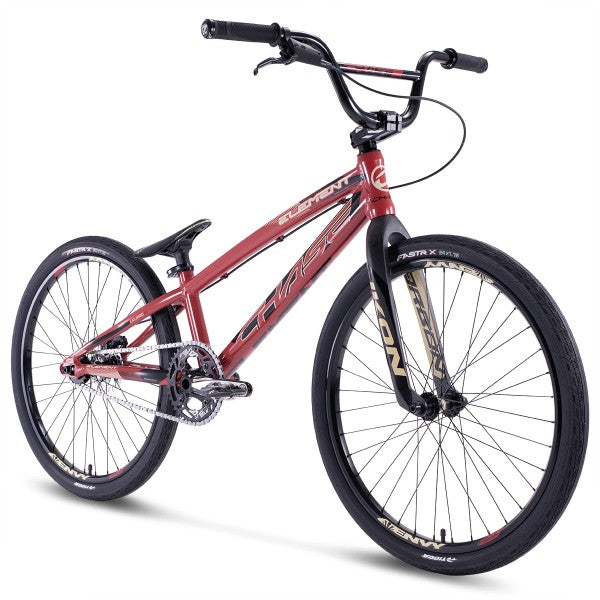

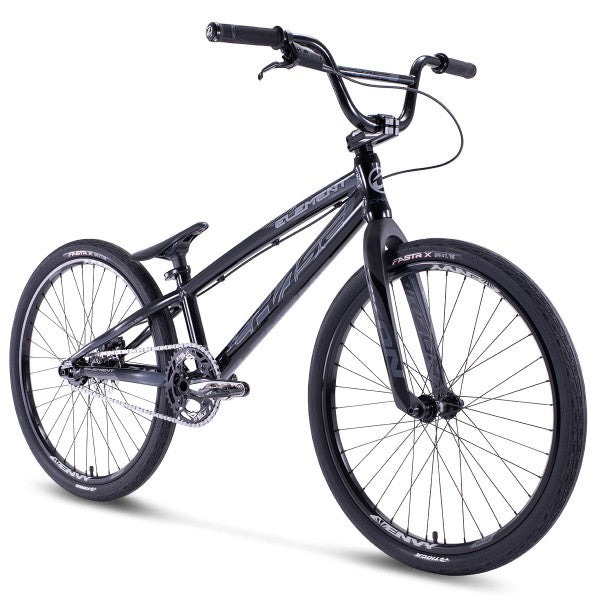

FRAME: Chase Element Pro Cruiser 21.5e Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 50mm
HANDLEBAR: Chase Element 31.8mm 5.75"
CHAINRING: Insight 41T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 18T cog
RIMS: Sun Ringlé Envy Rims 24×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 24×1.75" Front & Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
PEDALS - Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

WEIGHT: 21.7 LBS / 9.85 KG WITH PEDALS
RIDER SIZE: 5′ 6,1″ – 6′ 0,8″ / 1M68 – 1M85

FRAME: CHASE Element Pro+ Cruiser 22" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 50mm
HANDLEBAR: Chase Element 31.8mm 5.75"
CHAINRING: Insight 41T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 18T cog
RIMS: Sun Ringlé Envy Rims 24×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 24×1.75" Front & Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS - Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 5' 6.9" - 6' 2.8" / 1m70 - 1m90
WEIGHT: 21.7 LBS / 9.85 Kg with pedals

The Element 10 foundation is the new frame- an updated Disc brake specific 7005 T6 frame. The Element frame is built using the ultimate in Alloy Technology - Double & Tripple Butted tubing and Hydroformed & Tapered tubing. Frame features include an integrated chain tensioner / disc brake mounting system, Disc brake specific design, and a Press Fit BB86 Bottom Bracket. The Element frame uses the same geometry as our UCI World Champion and USA BMX Championship winning Chase ACT Carbon Fiber Frame and RSP race frames, all featuring the Aero Shaped seat tube.

The Element frame is built up with some of the best parts in BMX, including- IKON Pro Carbon 20mm Fork, Sun Envy Alloy Rims, Tioga Fastr Tires, KMC Chain, Disc ISO Rear Cassette hub with 72 points of engagement, 31.8 Handlebars & Stem, Excess LSP Cranks, Insight Chainring, Grips, and Hydraulic brakes.

#WinWithChase has been a guide whenever we design a new bike or frame, giving riders the best to help them win. We feel the new Element is an unfair advantage with the technology, race history, and experience we have built into it! All thats left is for you to get on the gate!

GEOMETRIES :

NOTE: Chase Element Pictured with Shimano XT Pedals but are for photo purposes only. Bikes come with Nylon Platform Pedals.

IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.

TECHNOLOGIES

Chase Bicycles introduces the Aero seat post tube, seat post, and seat post clamp into BMX racing with our Element bikes and our ACT 1.0 and RSP 3.0 frames. This is to not only to help gain fractions of a second on the track with improved aerodynamics, but the Aero tubes also offers a slightly stiffer feel. We know BMX bikes don’t need to go fully aero testing into a wind tunnel, but when races are won or lost by fractions of a second, every advantage will help..

It doesn’t matter how much you can squat, if your rear hub ins’t worth squat. But with the new Chase Element Triple Precise Rear hub clutch system, all you will have to worry about is how to where to put you trophies instead of if your hub can take all the power you can dish out. The 3 pawls clutch system gives you a direct link to power, while keeping the rear hub light and easy to maintain. With 72 points of engagement, the drag is also minimal, while being secure enough for Champions riders like Connor Fields and Joris Daudet to ride on with confidence.

Chase utilizes the CNC machining process to produce out 3D Modulus Dropout and small parts of the Edge and Element frames. Using the CNC process allows us to design parts that are specifically built to work the best with our proprietary frame tubes, giving us another way to control the overall weight and strength – flex factor on the frames, to give you, the best ride and feel from our complete bikes. Precision machining enhances the beauty and craftsmanship ship of all frames offered from Chase.

Chase Bicycles utilizes tapered tubing to offer you the most durable, yet light weight products, to help you achieve optimum results on the BMX race track. Our tapered items, use multiple thicknesses in the same tube, so the tube can be reinforced where needed with precision to help reduce stress areas where needed and lighten up the areas that don’t require extra materials. In aluminum the result are tube walls that eliminate stress points, boosting strength, reducing weight and improving fatigue life. The advantage is clear : Tapered tubes enhances strength and durability, at less weight.

Chase has designed and added the new Enclosed Rear dropout on the Element frame was developed to add strength to the frame for usage of the Disc Brake mount, as well as the easy of having an integrated chain tensioner system built into the frame. We use this same technology on our flagship BMX racing frame, the Chase ACT 1.0 Carbon Fiber frame.

Born from some of the best alloys for building BMX race bikes, our special 6061-T6 SpeedLite alloy is the perfect blend for our Hydro-forming process, giving the Element frames the core strength needed to produce unmatched speed on the track, while keeping the overall weight of the frame down to a minimum.

Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frames, the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

Chase utilizes the triple butting on our line of Element bikes. A triple-butted tube means it has three different wall thicknesses along its length. Chase uses this technology to reduce the amount of material used when building the Element frame, decreasing its weight by 15% compared to last years frame tubes used to construct the frame. Lighter where it can be and stiffer where it needs to be means no excess weight on the bike that gives you an advantage with the Element frame and against the completion.

Chase incorperates the Integrated headset system on all of our frames. Simply put, It is a bicycle frame, fork and bearing system designed to eliminate the need for a headset cup. To integrate means to combine and hopefully to simplify. What has been integrated by the integrated headset? The bearings now rest inside the frame instead of inside pressed-in cups, making it easier for headset installation, helping create less maintenance on your race bike, all while making the front end stiffer and the overall bike lighter.

Early Chase Element bikes, RSP 4.0 & ACT 1.0 Frames both use a Press Fit style Bottom Bracket tube. Press Fit BB are a simple and easy way to install a Bottom Bracket, where the Bottom Bracket you supply for your frame has the Bearings in cups and simply press into the frame, eliminating the chance of damaging BB threads, with the traditional Euro BB. The BB is usually lighter and easier to install and remove as well.
