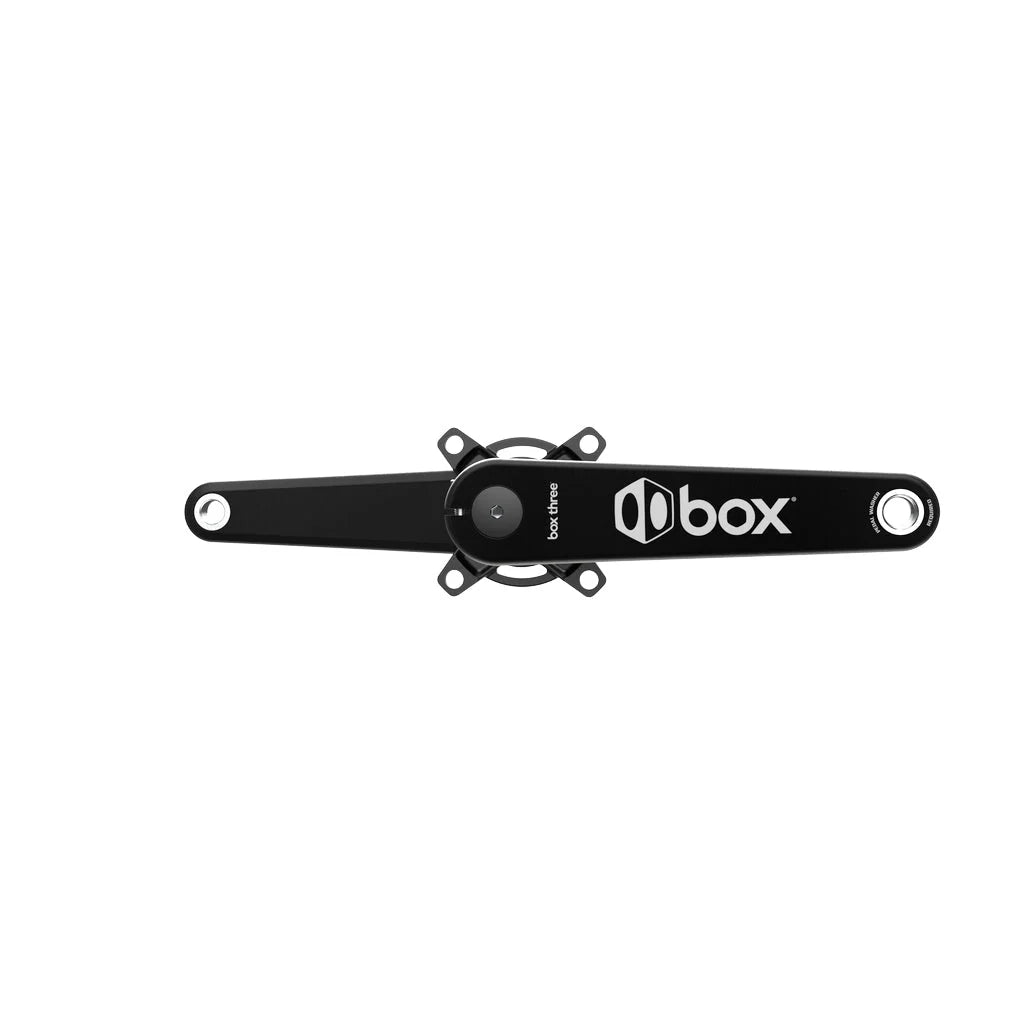

Box Three Hollow-Forged Crankset
170mm
$349.99
Skip to product information
Box Three Hollow-Forged Crankset
$349.99
Details
The Box Three Crankset features a hollow-forged 2-piece design with an oversized bottom bracket interface. The 24mm spindle is pressed into the drive-side crank arm for durability and easy installation. The non-drive side crank arm features a 2-bolt pinch system for added strength. Our unique 4-bolt 104 BCD spider features a flex-resistant ring for optimum performance.
Box Three Cranks feature steel pedal inserts that require pedal washers and externally sealed bearing BSA bottom brackets, both provided in the box.
For compatibility questions, please click here.
Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard
Material:
• Arms: 6061-T6 Aluminum
• Spindle: Chromoly Steel
Process:
• Arms: Hollow-Forged & CNC
• Spindle: CNC Turned
Finish: Anodized w/Laser-Etched Graphics
Chainline: 44.5mm
Q Factor: 168m
Spindle: 24mm Included
Bottom Bracket: BSA 1.37 Included
Torque Specs: 12-14 Nm
Compatibility:
• Chainring: 4-bolt 104 BCD
Size & Weight:
• 170mm / 1,010g/35.6oz
• 175mm / 1,020g/35.9oz
• 177.5mm / 1,020g/35.9oz
• 180mm / 1,010g/35.6oz
• Arms: 6061-T6 Aluminum
• Spindle: Chromoly Steel
Process:
• Arms: Hollow-Forged & CNC
• Spindle: CNC Turned
Finish: Anodized w/Laser-Etched Graphics
Chainline: 44.5mm
Q Factor: 168m
Spindle: 24mm Included
Bottom Bracket: BSA 1.37 Included
Torque Specs: 12-14 Nm
Compatibility:
• Chainring: 4-bolt 104 BCD
Size & Weight:
• 170mm / 1,010g/35.6oz
• 175mm / 1,020g/35.9oz
• 177.5mm / 1,020g/35.9oz
• 180mm / 1,010g/35.6oz
