CHASE EDGE

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

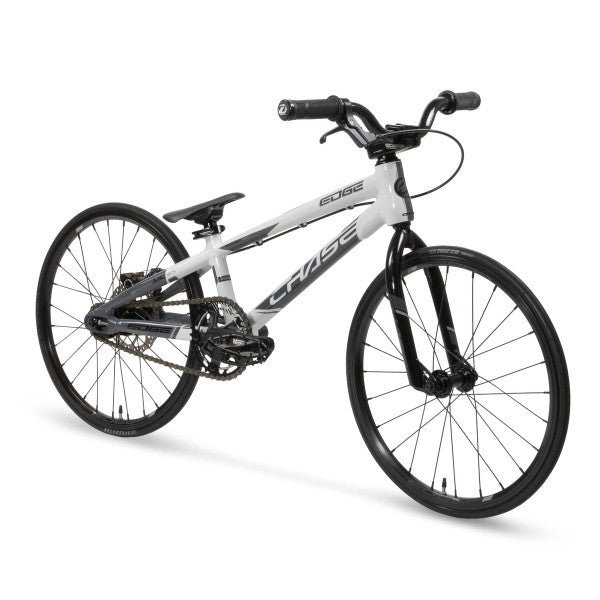

• FRAME: CHASE Edge Micro 16.25″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Micro, Full Cr-mo, 1″ Steer Tube
• STEM: CHASE Edge 40mm
• HANDLEBAR: CHASE Edge 2.25″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 35T 5 Bolts BCD 110mm
• CRANKSET: CHASE Edge Alloy 130mm, 113mm squared axle BB
• HUBS: CHASE Edge Mini, 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: CHASE Edge 100 Double Wall 18″x1″, 24H Front, 28H Rear
• TIRES: VEE RUBBER Speedster 18″x1″ Front and Rear
• BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
• SEAT: INSIGHT Mini Pivotal
• WEIGHT: 15.4 LBS / 6,99 KG WITHOUT PEDALS
• RIDER SIZE: 3′ 3,4″ – 3′ 8,9″ / 1M00 – 1M15

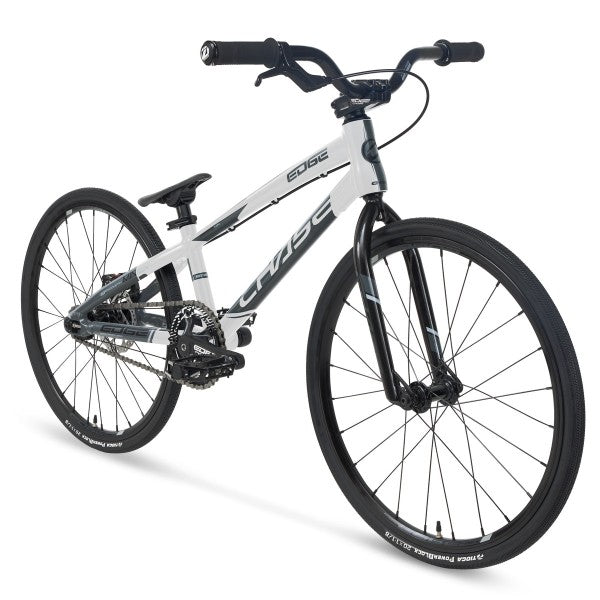

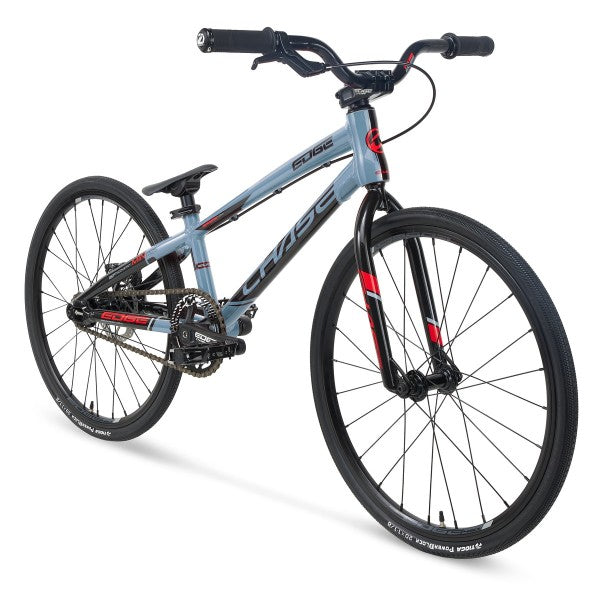

• FRAME: CHASE Edge Mini 17.25″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Mini, Full Cr-mo, 1″ Steer Tube
• STEM: CHASE Edge 40mm
• HANDLEBAR: CHASE Edge 2.25″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 36T 5 Bolts BCD 110mm
• CRANKSET: CHASE Edge Alloy 140mm, 113mm squared axle BB
• HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: CHASE Edge 118 Double Wall 20″x1-1/8″, 24H Front and 28H Rear
• TIRES: TIOGA PowerBlock 20″x1-1/8″ Front and Rear
• BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
• SEAT: INSIGHT Mini Pivotal
• WEIGHT: 16.7 LBS / 7,59 KG WITHOUT PEDALS
• RIDER SIZE: 3′ 7,3″ – 4′ 1,2″ / 1M10 – 1M25

• FRAME: CHASE Edge Junior 18.75″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Mini, Full Cr-mo, 1″ Steer Tube
• STEM: CHASE Edge 40mm
• HANDLEBAR: CHASE Edge 4.25″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 38T 5 Bolts BCD 110mm
• CRANKSET: CHASE Edge Alloy 150mm, 113mm squared axle BB
• HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: CHASE Edge 118 Double Wall 20″x1-1/8″, 24H Front and 28H Rear
• TIRES: TIOGA PowerBlock 20″x1-1/8″ Front and Rear
• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
• SEAT: INSIGHT Mini Pivotal
• WEIGHT: 16.86 LBS / 7,95 KG WITHOUT PEDALS
• RIDER SIZE: 4′ – 4′ 5,1″/ 1M22 – 1M35

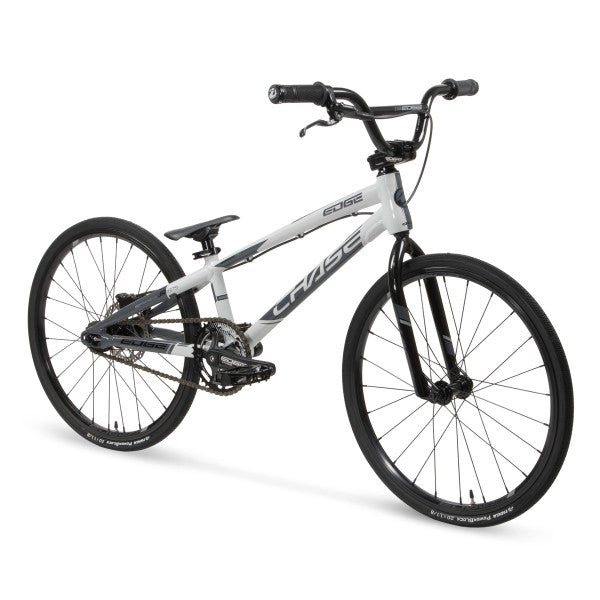

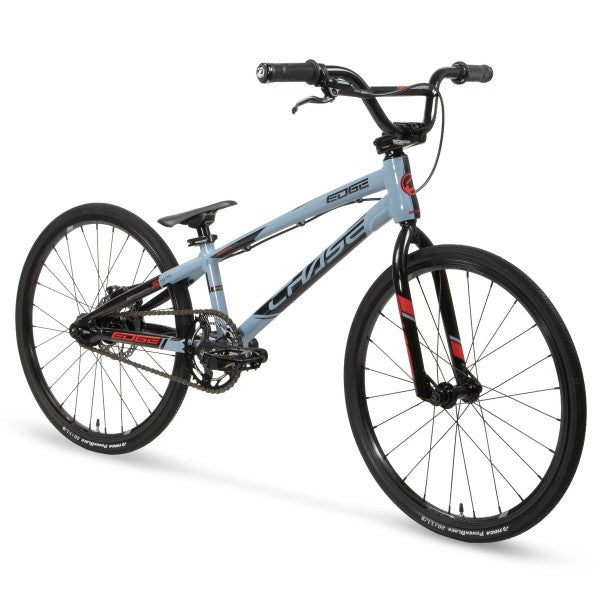

• FRAME: CHASE Edge Expert 19.75″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Expert, Full Cr-mo, 1-1/8″ Steer Tube
• STEM: CHASE Edge 50mm
• HANDLEBAR: CHASE Edge 5.75″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 40T 5 Bolts BCD 110mm
• CRANKSET: CHASE Edge Alloy 160mm, 113mm squared axle BB
• HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: CHASE Edge 138 Double Wall 20″x1-3/8″, 28H Front and Rear
• TIRES: TIOGA PowerBlock 20″x1-3/8″ Front and Rear
• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
• SEAT: CHASE Edge Pro Pivotal
• WEIGHT: 18.6 LBS / 8,47 KG WITHOUT PEDALS
• RIDER SIZE: 4′ 4″ – 4′ 9,5″ / 1M32 – 1M46

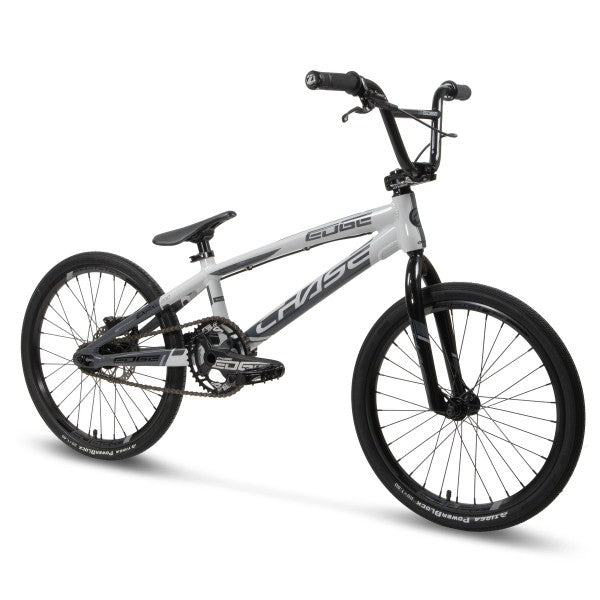

• FRAME: Chase Edge Expert XL 20″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: Chase Edge Expert, Full Cr-mo, 1-1/8″ Steer Tube
• STEM: Chase Edge 50mm
• HANDLEBAR: Chase Edge 6.5″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: Insight 41T 4 Bolts BCD 104mm
• CRANKSET: Chase Edge 2 Pieces Alloy 170mm
• HUBS: Chase Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: Chase Edge 150 Double Wall 20″x1.50″, 32H Front and Rear
• TIRES: Tioga PowerBlock 20″x1.60″ Front and 20″x1.40″ Rear
• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
• SEAT: Chase Edge Pro Pivotal
• WEIGHT: 19,5 LBS / 8,85 KG WITHOUT PEDALS
• RIDER SIZE: 4′ 8,7″ – 5′ 1″ / 1M44 – 1M55

• FRAME: CHASE Edge Pro 20.5″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Pro, Full Cr-mo, 1-1/8″ Steer Tube
• STEM: CHASE Edge 50mm
• HANDLEBAR: CHASE Edge 7.5″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 42T 4 Bolts BCD 104mm
• CRANKSET: CHASE Edge 2 Pieces Alloy 175mm
• HUBS: CHASE Edge Pro 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: CHASE Edge 150 Double Wall 20″x1.50″, 32H Front and Rear
• TIRES: TIOGA PowerBlock 20″x1.85″ Front and PowerBlock 20″x1.60″ Rear
• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
• SEAT: CHASE Edge Pro Pivotal
• WEIGHT: 20.6 LBS / 9,37 KG WITHOUT PEDALS
• RIDER SIZE: 4′ 11,8″ – 5′ 5,4″ / 1M52 – 1M66

• FRAME: CHASE Edge Pro XL 21″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Pro, Full Cr-mo, 1-1/8″ Steer Tube
• STEM: CHASE Edge 50mm
• HANDLEBAR: CHASE Edge 8.0″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 43T 4 Bolts BCD 104mm
• CRANKSET: CHASE Edge 2 Pieces Alloy 175mm
• HUBS: CHASE Edge Pro 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: CHASE Edge 175 Double Wall 20″x1.75″, 36H Front and Rear
• TIRES: TIOGA PowerBlock 20″x1.85″ Front and PowerBlock 20″x1.60″ Rear
• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
• SEAT: CHASE Edge Pro Pivotal
• WEIGHT: 20.7 LBS / 9,41 KG WITHOUT PEDALS
• RIDER SIZE: 5′ 4,6″ – 5′ 10,1″ / 1M64 – 1M78

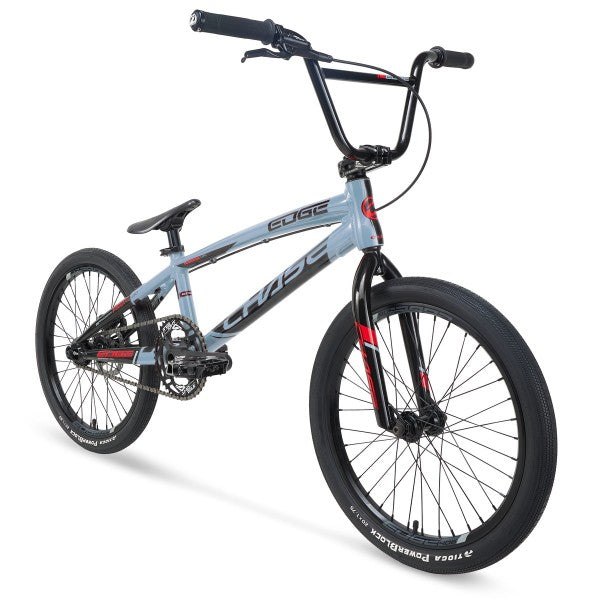

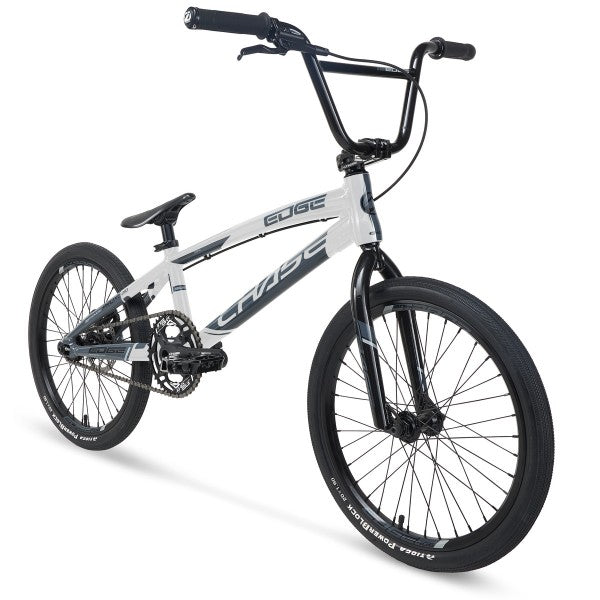

• FRAME: CHASE Edge Pro XXL 21.5″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Pro, Full Cr-mo, 1-1/8″ Steer Tube
• STEM: CHASE Edge 50mm
• HANDLEBAR: CHASE Edge 8.5″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 44 Tooth 4 Bolt
• CRANKSET: CHASE Edge 2 Pieces Alloy 175mm
• HUBS: CHASE Edge Pro 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: CHASE Edge 175 Double Wall 20″x1.75″, 36H Front and Rear
• TIRES: TIOGA PowerBlock 20″x1.85″ Front and PowerBlock 20″x1.60″ Rear
• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
• SEAT: CHASE Edge Pro Pivotal
• WEIGHT: 20.8 LBS / 9,43 KG WITHOUT PEDALS
• RIDER SIZE: 5′ 8,9″ – 6′ 1,6″ / 1M75 – 1M87

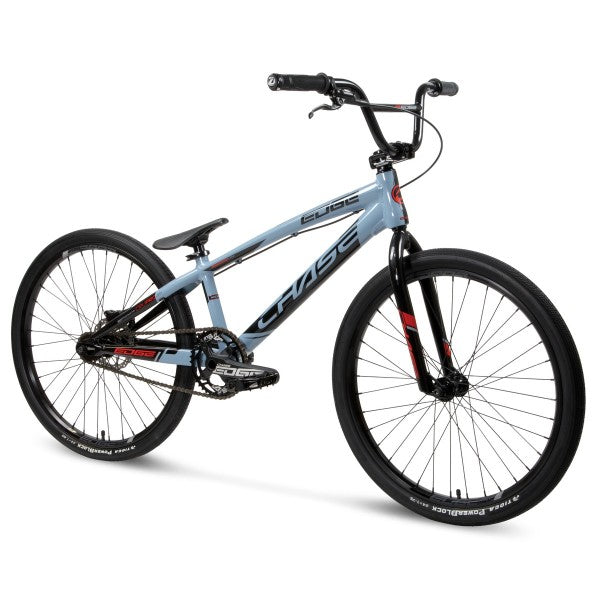

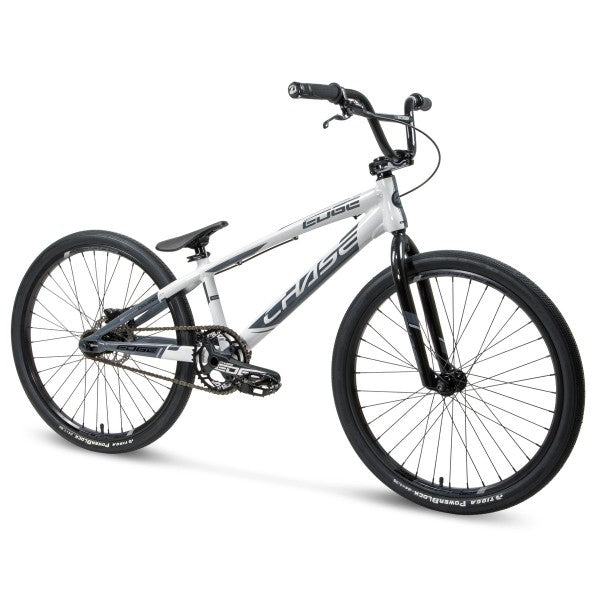

• FRAME: CHASE Edge Pro Cruiser 21.5″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Cruiser, Full Cr-mo, 1-1/8″ Steer Tube
• STEM: CHASE Edge 50mm
• HANDLEBAR: CHASE Edge 5.75″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 41T 4 Bolts BCD 104mm
• CRANKSET: CHASE Edge 2 Pieces Alloy 175mm
• HUBS: CHASE Edge 10mm, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 18T cog
• RIMS: CHASE Edge 175 Double Wall 24″x1.75″, 36H Front and Rear
• TIRES: TIOGA PowerBlock 24″x1.75″ Front and 24″x1.60″ Rear
• BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
• SEAT: CHASE Edge Pro Pivotal
• WEIGHT: 22 LBS / 10 KG WITHOUT PEDALS
• RIDER SIZE: 5′ 6,1″ – 6′ 0,8″ / 1M68 – 1M85

GEOMETRIES

TECHNOLOGIES

Chase has designed and added the new Enclosed Rear dropout on the Element frame was developed to add strength to the frame for usage of the Disc Brake mount, as well as the easy of having an integrated chain tensioner system built into the frame. We use this same technology on our flagship BMX racing frame, the Chase ACT 1.0 Carbon Fiber frame.

It doesn’t matter how much you can squat, if your rear hub ins’t worth squat. But with the new Chase Element Triple Precise Rear hub clutch system, all you will have to worry about is how to where to put you trophies instead of if your hub can take all the power you can dish out. The 3 pawls clutch system gives you a direct link to power, while keeping the rear hub light and easy to maintain. With 72 points of engagement, the drag is also minimal, while being secure enough for Champions riders like Connor Fields and Joris Daudet to ride on with confidence.

Chase utilizes the CNC machining process to produce out 3D Modulus Dropout and small parts of the Edge and Element frames. Using the CNC process allows us to design parts that are specifically built to work the best with our proprietary frame tubes, giving us another way to control the overall weight and strength – flex factor on the frames, to give you, the best ride and feel from our complete bikes. Precision machining enhances the beauty and craftsmanship ship of all frames offered from Chase.

Chase Bicycles utilizes tapered tubing to offer you the most durable, yet light weight products, to help you achieve optimum results on the BMX race track. Our tapered items, use multiple thicknesses in the same tube, so the tube can be reinforced where needed with precision to help reduce stress areas where needed and lighten up the areas that don’t require extra materials. In aluminum the result are tube walls that eliminate stress points, boosting strength, reducing weight and improving fatigue life. The advantage is clear : Tapered tubes enhances strength and durability, at less weight.

While each rider is unique, Chase Bicycles has developed Bio Fit sizing for our frames to offer riders the ultimate size options for BMX racing. The sizing used for the Chase line has been carefully designed to give riders the optimum power output in the size range offered. Our commitment to details and offering many size options, gives you a custom fit BMX frame, that you can buy right at your local Chase BMX Dealer.

Born from some of the best alloys for building BMX race bikes, our special 6061-T6 SpeedLite alloy is the perfect blend for our Hydro-forming process, giving the Element frames the core strength needed to produce unmatched speed on the track, while keeping the overall weight of the frame down to a minimum.

Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frames, the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

Chase utilizes the triple butting on our line of Element bikes. A triple-butted tube means it has three different wall thicknesses along its length. Chase uses this technology to reduce the amount of material used when building the Element frame, decreasing its weight by 15% compared to last years frame tubes used to construct the frame. Lighter where it can be and stiffer where it needs to be means no excess weight on the bike that gives you an advantage with the Element frame and against the completion.

Chase incorperates the Integrated headset system on all of our frames. Simply put, It is a bicycle frame, fork and bearing system designed to eliminate the need for a headset cup. To integrate means to combine and hopefully to simplify. What has been integrated by the integrated headset? The bearings now rest inside the frame instead of inside pressed-in cups, making it easier for headset installation, helping create less maintenance on your race bike, all while making the front end stiffer and the overall bike lighter.

BSA or more commonly know as a “Euro” Bottom Bracket refers to the tread in type of BB, using either a Internal or External Bottom Bracket with a 68 or 73mm BB shell with 1.370/1.375″ x 24 TPI threads and a left hand thread on the drive side cup. This is now considered to be a standard threaded bottom bracket shell or bottom bracket. We use the BSA Threaded BB on both the Edge and Element bikes, where a PF or Press Fit BB, with no treads is used on our ACT Carbon Frame.
